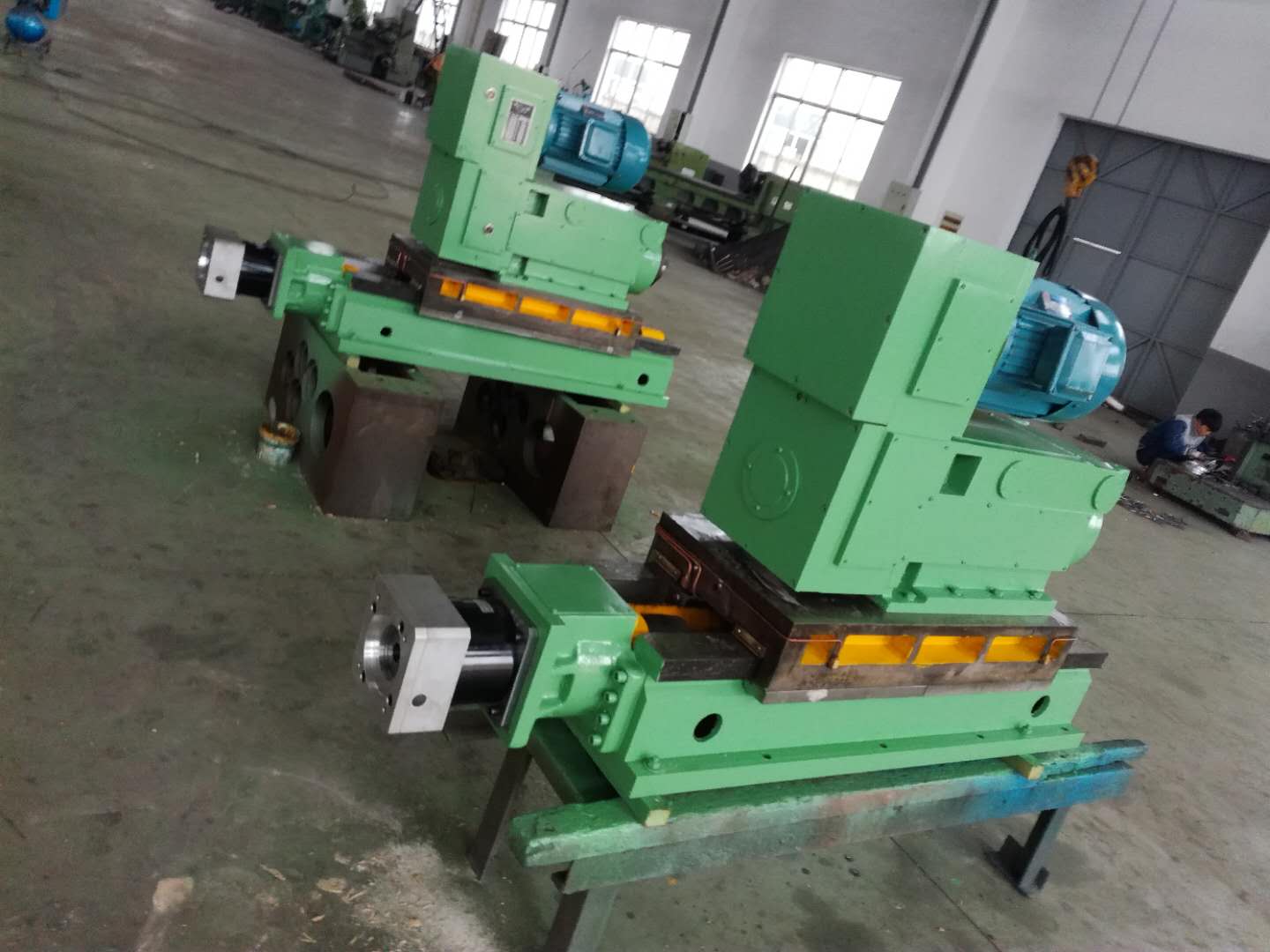

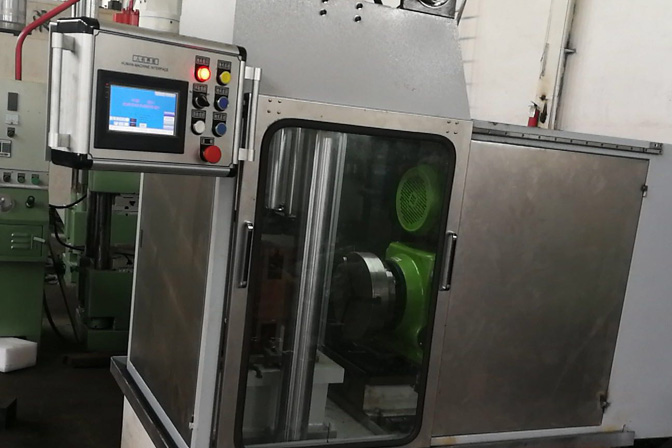

YDJ-S Series Single Head Fitting Beveling Machine
YDJ-S SeriesSingle Head FittingBeveling Machineis made to bevel the end of elbow tee reducer pipe cap fitting and pipe end. Materials could be carbon steel stainless steel and alloy steel etc. Features: *There are three blades for the c
YDJ-S Series Single Head Fitting Beveling Machine is made to bevel the end of elbow, tee, reducer, pipe cap fitting and pipe end. Materials could be carbon steel, stainless steel and alloy steel etc.
Features:
* There are three blades for the cutter specially for the outside the middle and the inside beveling, which can work at the same time to ensure efficient cutting and save working time.
* The system will be improved by using touch screen and PLC for intelligent control.
* The sliding table feeding will be controlled by servo motor and screw rod instead of manual speed control valve so that to increase the beveling length accuracy.
* The machine is covered all around to prevent cutting chips and cutting fluid splashed out to avoid slippery ground and protect operators.
Configuration:
1) Spindle: Chinese Brand
2) Valve: YUKEN (Japan)
3) PLC & TOUCH SCREEN: MITSUBISH (JAPAN)
4) Electric part: Schneider or Omron
5) Servo motor driven with screw rod
6) Slider: Taiwan Brand
7) All joints we will use inch srew thread (British standard) or American standard
8) All Jigs we use SA1045 steel
9) Warranty time: 24 months for machinery, 12 months for molds
Model Parameter |
YDJ-S2503A | YDJ-S3204B | YDJ-S4008A | YDJ-S5012B | YDJ-S5016A | YDJ-S6324A | YDJ-S8032A | |
Processing Size | Inch | 1/2"-3" | 1"-4" | 3"-8" | 5"-12" | 8"-16" | 12"-24" | 22"-32" |
Wall Thickness | SCH | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCHXS | SCHXS |
Feed Type of Sliding Table | / |
Hydraulic Stepless Speed Control |
Hydraulic Stepless Speed Control |
Hydraulic Stepless Speed Control |
Hydraulic Stepless Speed Control |
Hydraulic Stepless Speed Control |
Hydraulic Stepless Speed Control |
Hydraulic Stepless Speed Control |
Clamping Type | / | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
System Pressure | Mpa | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
Power | KW | 7 | 8 | 11 | 15 | 19 | 34 | 41 |
Weight | T | 3.6 | 6.3 | 10 | 16 | 22 | 30 | 36 |
