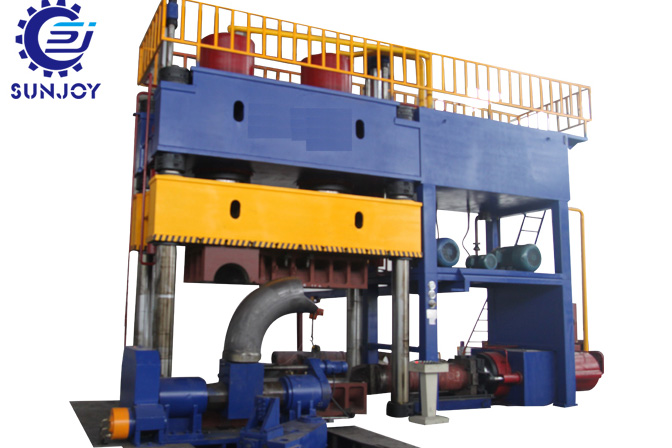

HLE Series Mandrel Type Elbow Cold Forming Machine
HLE Series Mandrel Type Elbow Cold Forming Machine is made for producing 1.0D 1.5D elbows of 1/2 to 24 of stainless steelcarbon steel copper steel and alloy steel. Features: *High speed automatic HLE series elbow cold forming machine has s
HLE Series Mandrel Type Elbow Cold Forming Machine is made for producing 1.0D & 1.5D elbows of 1/2" to 24" of stainless steel, carbon steel, copper steel and alloy steel.
Features:
*High speed automatic HLE series elbow cold forming machine has strong steel structure and four-column framework with good appearance and stable performance;
*Elbow cold forming machine is full-automatically operated, centralized control through PLC touch screen, with the convenient function of data saving, clear to monitor and easy to operate;
*Molds/dies, mandrels and pushing heads, pushing rods are precisely designed and manufactured according to different elbow dimensions & wall thickness, enabling elbows qualified within standard tolerance;
*The whole hydraulic system maintains superior sealing performance, avoiding any leakage or spillage.
*Proportional hydraulic control system is adopted to save energy, stabilize performance, keep low noise and long service life.
*Get CE approval and ISO 9001:2008 certificate.
Model Parameter |
HLE65A | HLE100B | HLE150B | HLE200A | HLE250 | HLE300B | HLE400A | |
Processing Size | Inch | 1/2"-21/2" | 1/2"-4" | 2"-6" | 4"-8" | 4"-10" | 5"-12" | 8"-16" |
Clamping Force | KN | 800 | 2000 | 2800 | 3500 | 4500 | 6300 | 12000 |
Pushing Force | KN | 600 | 1200 | 2000 | 3000 | 3500 | 5000 | 8000 |
Working Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Total Power | KW | ~18.5 | ~22 | ~30 | ~37 | ~42 | ~48 | ~65 |
Dimension | M | 2.8*1.2*2.5 | 3.2*1.4*3.0 | 3.6*1.5*3.5 | 45*1.8*3.7 | 5.2*1.9*3.9 | 6.5*2.8*4.7 | 7.8*4.5*5.5 |
Weight | T | ~6.5 | ~10.5 | ~22 | ~35 | ~48 | ~78 | ~122 |
