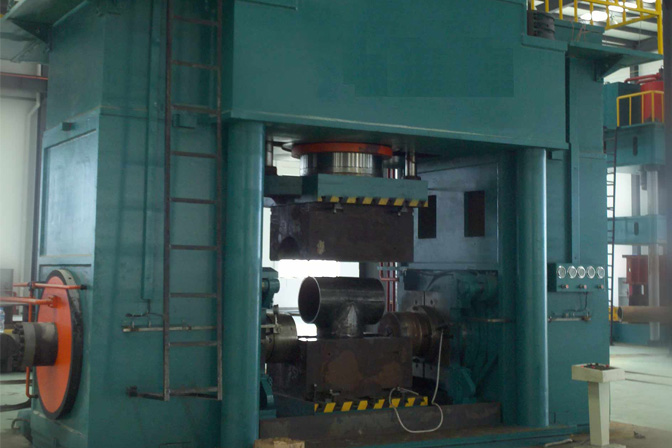

HTY Series Stainless Steel Tee Cold Forming Machine
HTY Series Tee Cold Forming Machineismadeto produce 1/2 to 24 equal tee and reducing tee of stainless steelcarbon steel copper steel and alloy steel. Features: * HTY series tee cold forming machine is full-automatically operated centraliz
HTY Series Tee Cold Forming Machine is made to produce 1/2” to 24” equal tee and reducing tee of stainless steel, carbon steel, copper steel and alloy steel.
Features:
* HTY series tee cold forming machine is full-automatically operated, centralized control through PLC touch screen, with the convenient function of parameters storing, clear to monitor and easy to operate.
* The producing parameters like pressure, speed, timing of each size and each thickness could be stored in PLC system and operated through touch screen.
*Proportional hydraulic control system is adopted to save energy, stabilize performance, keep low noise and long service life.
*Servo motor is adapted to save power consumption and reduce noise.
*Get CE approval and ISO 9001:2008 certificate.
|
Model Parameter |
HTY80A | HTY100A | HTY150B | HTY200A | HTY250B | HTY300B | HTY400A | |
| Processing Size | Inch | 1/2"-3" | 1/2"-4" | 2"-6" | 2"-8" | 4"-10" | 5"-12" | 6"-16" |
| Clamping Force | KN | 4500 | 6000 | 8000 | 15000 | 20000 | 25000 | 28000 |
|
Pushing Force |
KN | 4000×2 | 5000×2 | 7000×2 | 12000×2 | 18000×2 | 20000×2 | 25000×2 |
| Working Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Power | KW | ~55 | ~55 | ~90 | ~110 | ~135 | ~276 | ~295 |
| Table Size | mm | 660*660 | 660*660 | 1000*1000 | 1100*1100 | 1600*1600 | 1650*1800 | 1700*1800 |
| Weight | T | ~22 | ~28 | ~56 | ~70 | ~120 | ~220 | ~280 |
